C-MAC PROGRAMMABLE CONVERTER 24VDC
PCV20
Programmable multi-range signal converter and isolation amplifier.
Galvanic separation between supply, inputs and outputs
Input:
AC/DC current input from 15 µA to 10 A
AC/DC voltage input from 10 mV to 1000 VAC/1500 VDC
Frequency of input. Up to 10 kHz
Output, can be configured within the following areas:
0 to 20 mA. Max. external load: 500 Ohm
-10 to +10 V. Min. external load: 1000 Ohm
pulse outputs 0 to 10KHz
Supply 24VDC
Log ind for at se priser
All prices are excl. VAT
Related products
-

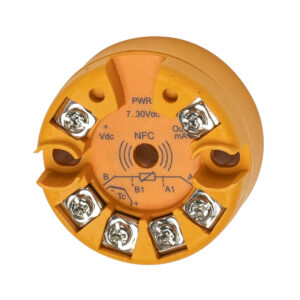

Signal converterBAUMER TOPHAT TRANSMITTER
TTP22
Programmable current loop powered PT100 transmitter
For installation in sensor head type B
Current consumption 4-20 mA, proportional to measuring temperature
Measuring ranges from -200°C to +850°C
For 2, 3 or 4 wire pt100 sensor -
Signal converterC-MAC VOLTAGE CONVERTER
LV10
Fixed programmed measured value converter/meter relay
Voltage input, variant dependent from 0 to 500VAC/DC
Current output 0/4-20mA
Voltage output 0/2-10VDC
Built-in supply for transducer
Galvanic isolation between supply and input/output -

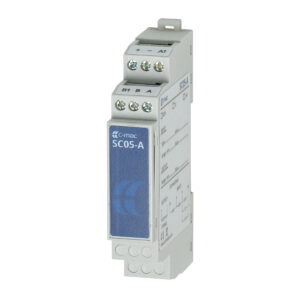

Signal converterC-MAC SIGNAL CONVERTER
