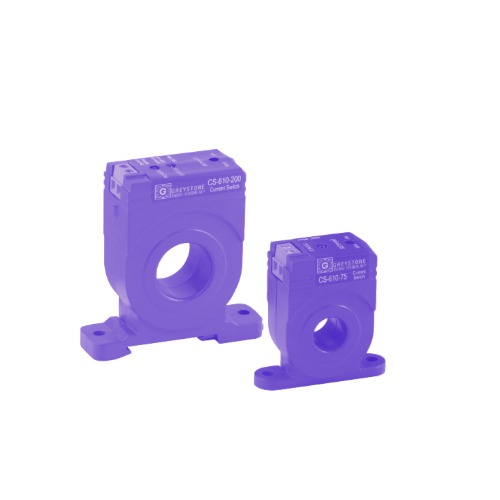

CS-610

The Greystone CS series of mini current switches monitors the current to the electrical load, e.g. a pump, conveyor, heat radiator, and closes the output contact when the measuring current exceeds the setpoint. The set point is adjusted on a potentiometer.

Measuring range: 0-75A or 0-200A.
SSR output NO
Self-sufficient via power loop
Operating temperature -15-60 °C
Hole size: 11mm

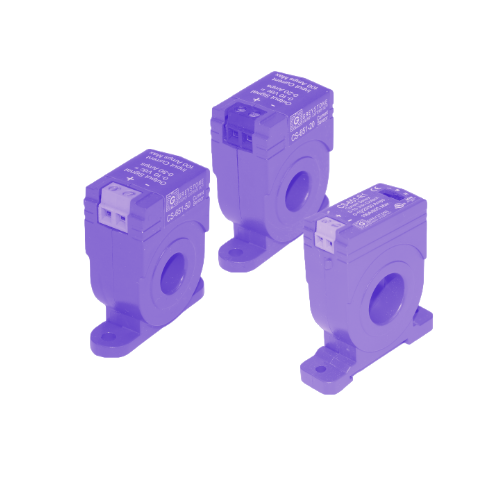

CS-651

he Greystone CS-651 series of mini current sensors monitor the current to the electrical load for e.g. a pump, conveyor, radiator
Measuring range: Select variant: 0-10A, 0-20A, 0-50A or 0-10/20/50A
Output: 0-10VDC proportional to load current
Self-sufficient via power loop
Operating temperature -15-60 °C
Hole size: 20mm

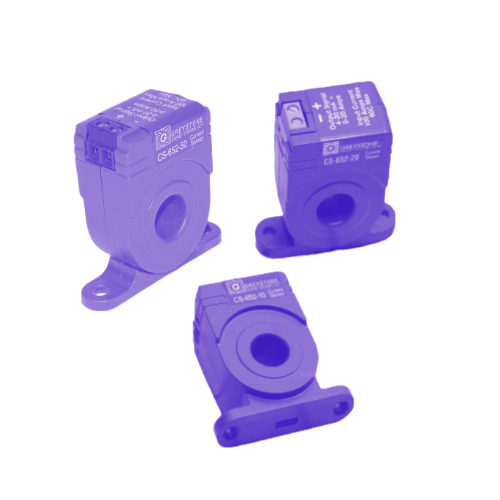

CS-652

The Greystone CS series of mini current sensors monitors the current to the electrical load for e.g. a pump, conveyor, radiator.
Measuring range: Select variant: 0-10A, 0-20A, 0-50A
Output: 4-20mA proportional to load current
Self-sufficient via power loop
Operating temperature -15-60 °C
Hole size: 20mm

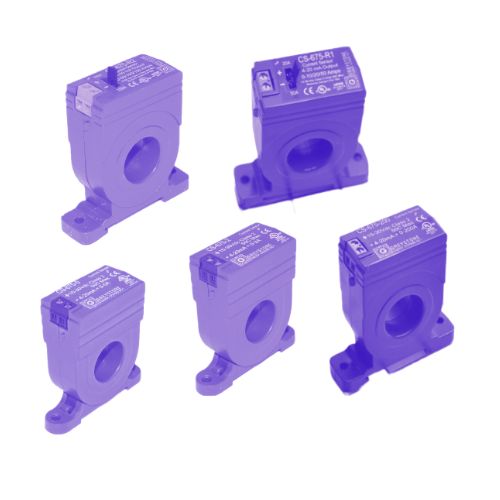

CS-675

The Greystone CS-675  series of mini current sensors monitors the current to the electrical load for e.g. a pump, conveyor, radiator.
Measuring range: 0-2A, 0-5A, 0-200A, 0-10/20/50A, 0-50/100/150A
Output: 4-20mA proportional to load current
Self-sufficient via power loop
Operating temperature -15-60 °C
Hole size: 20mm

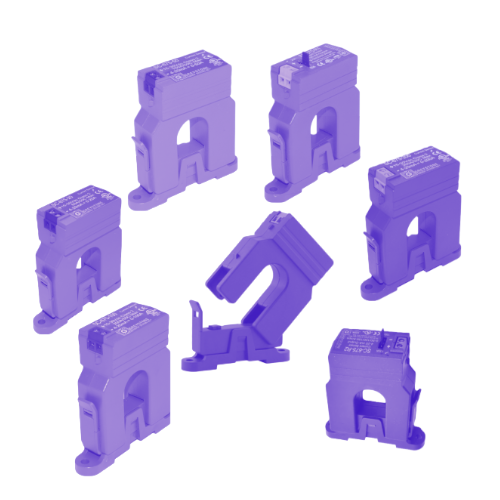

SC-675

Greystone SC series of Split-Core current sensor.
can be installed without removing the cable.
Monitors the current to the electrical load for e.g. a pump, conveyor, radiator.
Measuring range: 0-2/0-5/0-100/0-150/0-200A
Output: 4-20 mA
Self-sufficient via power loop
Operating temperature -15-60 °C
Hole size: 20mm
