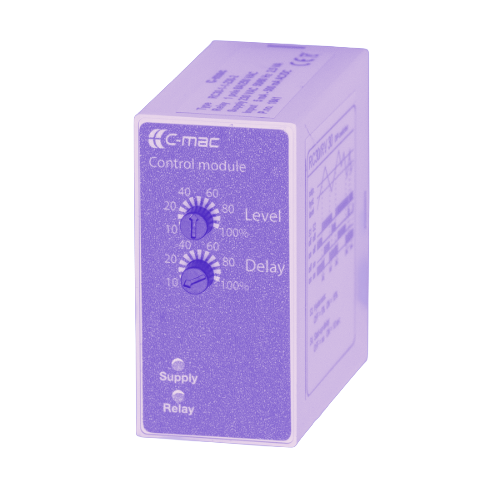

RV30 series are universal voltage measuring relays equipped with 3 measuring ranges.
Automatic detection of AC or DC measurement signal
Adjustment of setpoint and time delay
Selectable relay inversion, time delay, hysteresis
and start-up delay.
Ved hjælp af en DIP-switch, placeret i bunden af modulet. kan man vælge mellem 4 forskellige kombination af relæinvertering og tidsforsinkelse,
5 eller 15% hysterese, samt opstartsforsinkelse.
By means of a DIP-switch in the bottom of the unit you can select between 4 different combinations of relay inversion and reaction – delay,
5 or 15% hysteresis and start – up delay.
Ikke alle vores produkter er i vores webshop, se datablad for andre modeller / Not all products are in the webshop Se data sheet for orther models
Fandt du ikke det søgte er I altid velkommen til at skrive til os
Sales@comadan.com

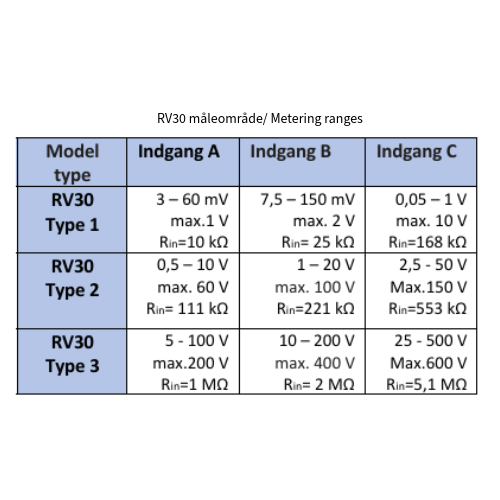

Universal voltage metering relays 3 metering ranges
Supply: 230 VAC
This model RV type 1 has a metering ranges 3-60 mV...
Universal voltage metering relays with 3 metering ranges
Supply: 230 VAC
This model RV type 2 has a Metering ranges of...
Universal voltage metering relays with 3 metering ranges
Supply: 230 VAC
This model RV type 3 has a metering ranges of...
Universal voltage metering relays with 3 metering ranges
Supply: 12-60 VDC
This model RV type 2 has a Metering ranges...
Universal voltage metering relays with 3 metering ranges
Supply: 12-60 VDC
This model RV type 3 has metering ranges 5...
