RV20 series is a single voltage measuring relay for DC signals

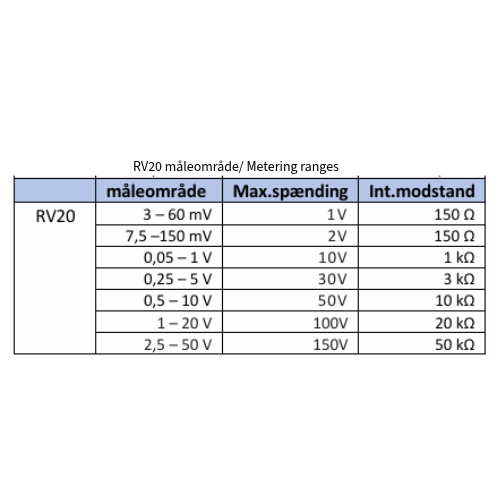

Available for 7 Metering ranges
Adjustment of setpoint and hysteresis
Optional e relay inversion
Available in 1 or 2 pole relay output
Modulerne kan leveres for flere spændingsområder, det aktuelle område specificeres ved bestilling, da hver enhed kun har et måleområde

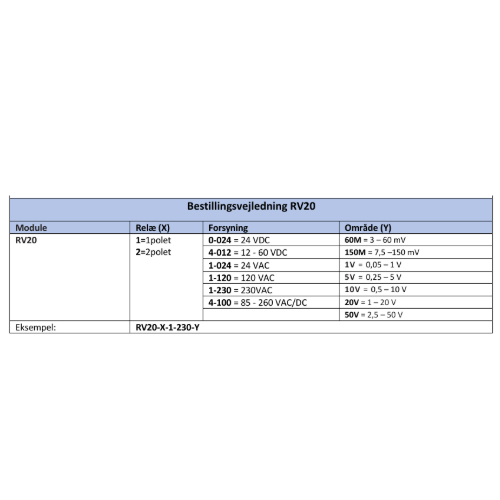

The modules can be supplied for several voltage ranges the current range is
specified by order, as each unit only has one voltage range
Ikke alle vores produkter er i vores webshop, se datablad for andre modeller / Not all products are in the webshop Se data sheet for orther models
Fandt du ikke det søgte er I altid velkommen til at skrive til os
Sales@comadan.com
DC voltage measuring relay with setpoint and hysteresis adjustment
Supply: 12-60 VDC
Measuring range 1-20 VDC
1-pole rel...
DC voltage measuring relay with setpoint and hysteresis adjustment
Supply: 120 VAC
Messuring range 7.5-150 m VDC
1-pole...
DC voltage measuring relay with setpoint and hysteresis adjustment
Supply: 230 VAC
Measuring range 0.5-10 VDC
2-pole rel...
DC voltage measuring relay with setpoint and hysteresis adjustment
Supply: 230 VAC
Measuring range 0.25-5 VDC
2-pole rel...
DC voltage measuring relay with setpoint and hysteresis adjustment
Supply: 230 VAC
Measuring range 0.05-1 VDC
1-pole rel...
DC voltage measuring relay with setpoint and hysteresis adjustment
Supply: 120 VAC
Measurement range 0.5-10 VDC
2-pole r...
