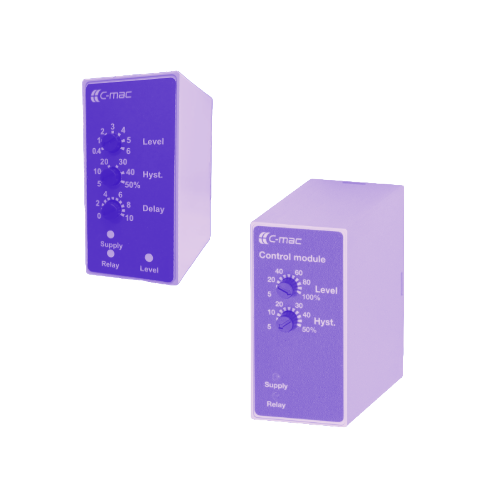

Our selection of voltage measuring relays

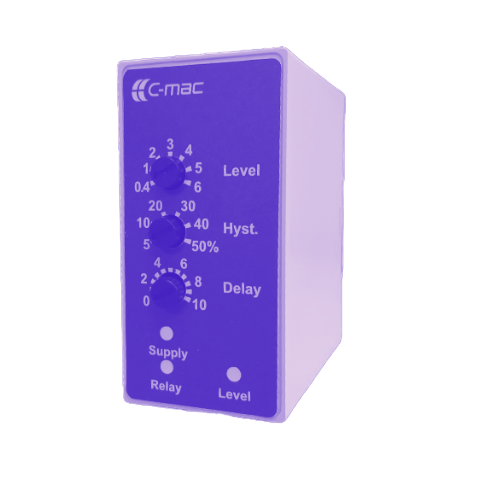

C-MAC® RV10 Universal voltage relay with 4 measuring inputs and measures both DC and AC
C-MAC® RV12 Universal voltage relay with 3 measuring ranges and measures both DC and AC
C-MAC® RV20 DC voltage monitoring
C-MAC® RV30 Universal voltage metering relays with 3 metering ranges
Click on one of the subcategories to see related products. Other products can be viewed further down.
RV10 series are universal voltage monitoringeasuring relays equipped with 4 measuring ranges and measure both DC and AC
Adjustments for setpoint, hysteresis and time delay
Selectable relay inversion, time delay and AC/DC mode
RV12 series are universal voltage measuring relays equipped with 3 measuring ranges and measure both DC and AC
Adjustments for setpoint and hysteresis
Relay inversion setting, AC/DC
RV20 series is a single voltage measuring relay for DC signals
Available for 7 Metering ranges
Adjustment of setpoint and hysteresis
Optional e relay inversion
Available in 1 or 2 pole relay output
RV30 series are universal voltage measuring relays equipped with 3 measuring ranges.
Automatic detection of AC or DC measurement signal
Adjustment of setpoint and time delay
Selectable relay inversion, time delay, hysteresis
and start-up delay.
