FP34- serien 3 -phase monitoring relays combined phase sequence and
under- and over voltage relay with fixed reaction delay and adjustable setpoint.
The standard type has a delay – ON and delay – OFF time at 1 sec., and an adjustabe setpoint from +/- 5 to +/- 25 % of the nominal voltage
Standardtypen har en fast ind- og udkoblingsforsinkelse på 1 sek. og et justerbart setpunkt fra +/- 5 til +/- 25% af nominel spænding.

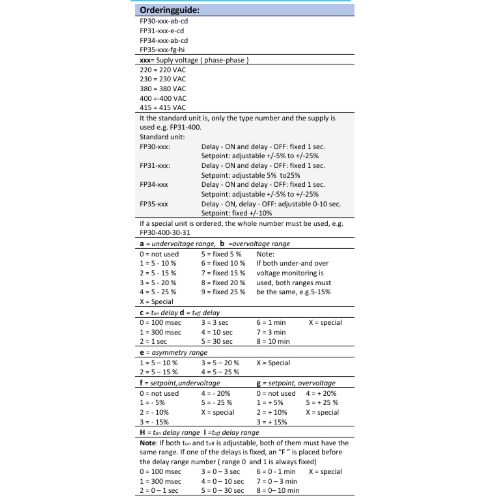

Modulet kan desuden leveres kun for under- eller verspændingsovervågning, kun med ind- eller udkoblingsforsinkelse, samt med andre tidforsinkelser eller setpunktområder, se bestillingsvejledningen
The standard type has a delay – ON and delay – OFF time at 1 sec., and an adjustabe setpoint from +/- 5 to +/- 25 % of the nominal voltage.
Optionally, the unit can be delivered for undervoltage or overvoltage detection only, with ON – delay or OFF – delay only, with different delay time, or with different setpoint range, see ordering guide.
Ikke alle vores produkter er i vores webshop, se datablad for andre modeller / Not all products are in the webshop Se data sheet for orther models
Fandt du ikke det søgte er I altid velkommen til at skrive til os
Sales@comadan.com
Combined phase sequence and over and under voltage relay
Monitoring of 3×400 VAC
Setpoint: Adjustable+/-5%til+/-15%
Del...
Combined phase sequence and over- and under
voltage relay
Monitoring of 3×400 VAC
Setpoint: Adjustable+/-5%til+/-25%
De...
Combined phase sequence and over and under voltage relay
Monitoring 3x400 VAC
Switch-on and switch-off delay: 1 sec.
Set...
Combined phase sequence and over and under voltage relay
Monitoring of 3×400 VAC
Setpoint:adjustable+/-5%til+/-25%
Dela...
