RC20 series is a single current monitoring relay for DC signals

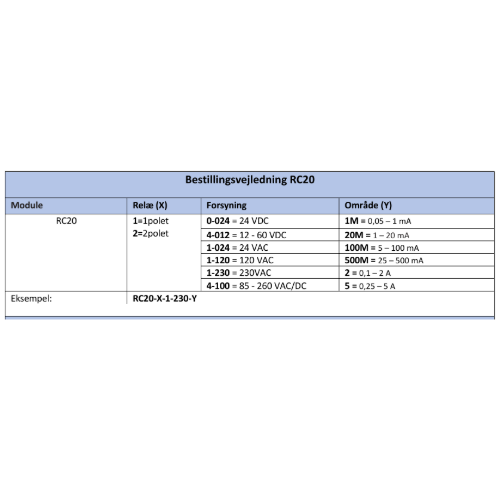

The modules can be supplied for several current ranges the current range is
specified by order, as each unit only has one voltage range
Kan leveres for 6 måle områder
Justering af setpunkt og hysterese
Valgbar relæinvertering
findes i 1 eller 2 polet relæudgang

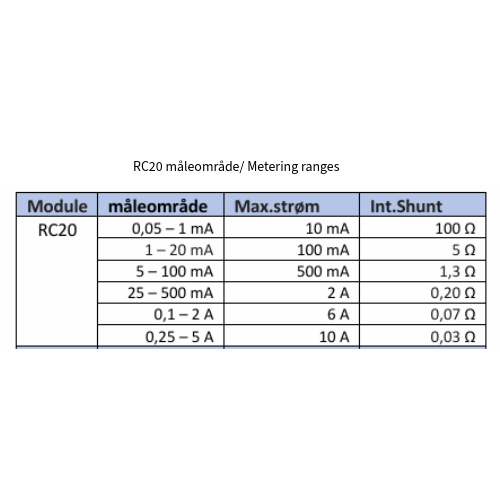

Available for 6 Metering ranges
Adjustment of setpoint and hysteresis
Optional e relay inversion
Available in 1 or 2 pole relay output
Ikke alle vores produkter er i vores webshop, se datablad for andre modeller / Not all products are in the webshop Se data sheet for orther models
Fandt du ikke det søgte er I altid velkommen til at skrive til os
Sales@comadan.com
Single current monitoring relay for DC signals
Supply: 230 VAC
Range: 5-100 mA
2-pole 5A relay output
Single current monitoring relay for DC signals
Supply: 12-60 VDC
Range: 0.25-5A
1-pole 8A relay output
Single current monitoring relay for DC signals
Supply: 12-60 VDC
Range: 25-500mA
2-pole 5A relay output
